5kW Single-Phase Hybrid Inverter | EHB Series

Smarter Solar. Battery-Ready. Backup Built-In.

The GW5K-EHB-AU-G11 from GoodWe’s EHB Series is a high-performance hybrid inverter built for modern Australian homes. It delivers reliable 5kW single-phase output, advanced battery compatibility, and seamless backup power — all in a compact, installer-friendly unit.

Designed with 3 independent MPPTs, it gives installers maximum flexibility for complex or split-array rooftops. With 200% PV oversizing, high-voltage battery support, and <10ms backup switching, this inverter is built for homes that want more out of solar — now and into the future.

Key Features

5kW Single-Phase Output – Reliable power for most residential installs
3 MPPTs – Flexibility to connect solar across multiple roof orientations
200% PV Oversizing – Connect up to 10kW of panels for bigger performance
Battery-Ready – Compatible with HV batteries (80–495V)
Built-In Backup – <10ms UPS switch time for critical loads
Fanless Cooling – Silent operation and low maintenance
Smart Monitoring – SEMS Portal access via Wi-Fi or optional 4G
Rapid Shutdown & AFCI – Built-in safety compliance for Australian standards

Frequently Asked Questions

How many MPPTs does this inverter have?

Three. This model features 3 independent MPPTs, offering excellent string design flexibility — perfect for homes with solar on 3 orientations or partial shading.

Can it run during a blackout?

Yes. The inverter offers seamless backup functionality with <10ms switch time — ideal for keeping fridges, lights, and essential circuits powered during outages.

Is it compatible with batteries?

Absolutely. The GW5K-EHB-AU-G11 is battery-ready and works with a wide range of high-voltage lithium battery brands (80–495V range).

What size solar array can I install?

You can install up to 10kW of solar panels (200% of inverter rating), making it ideal for homes planning to over-size their PV system for greater daytime generation or future battery charging.

How do I monitor the system?

You can monitor performance and data via GoodWe’s SEMS Portal, accessible on desktop or mobile. Real-time stats, alerts, and remote support all included.

Is it easy to install?

Yes. It includes pre-wired AC/DC breakers, external comms ports, and a plug-and-play layout. The fanless design also reduces moving parts and noise.

What’s the warranty?

It comes with a full 10-year product warranty, supported by GoodWe’s local team here in Australia.

Tradezone

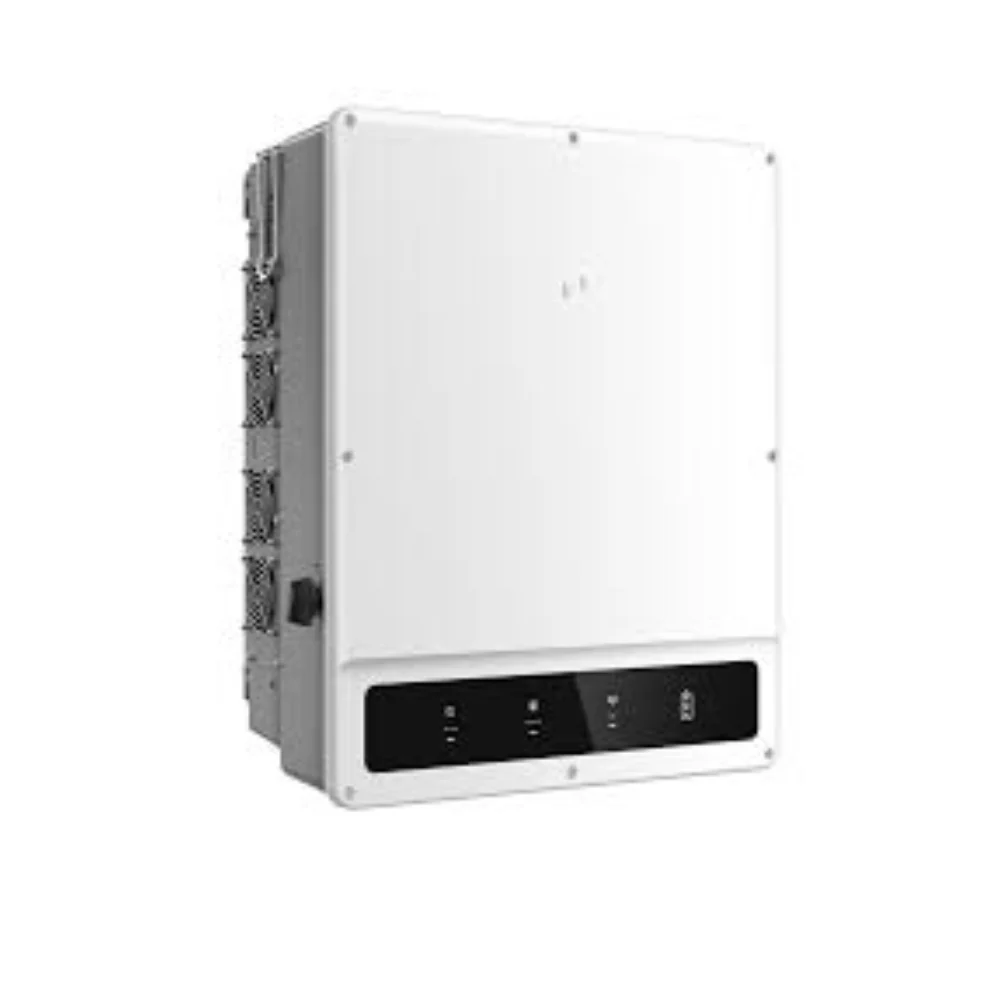

GoodWe 50kW 3 Phase ETC SERIES Hybrid Solar Inverter IP20

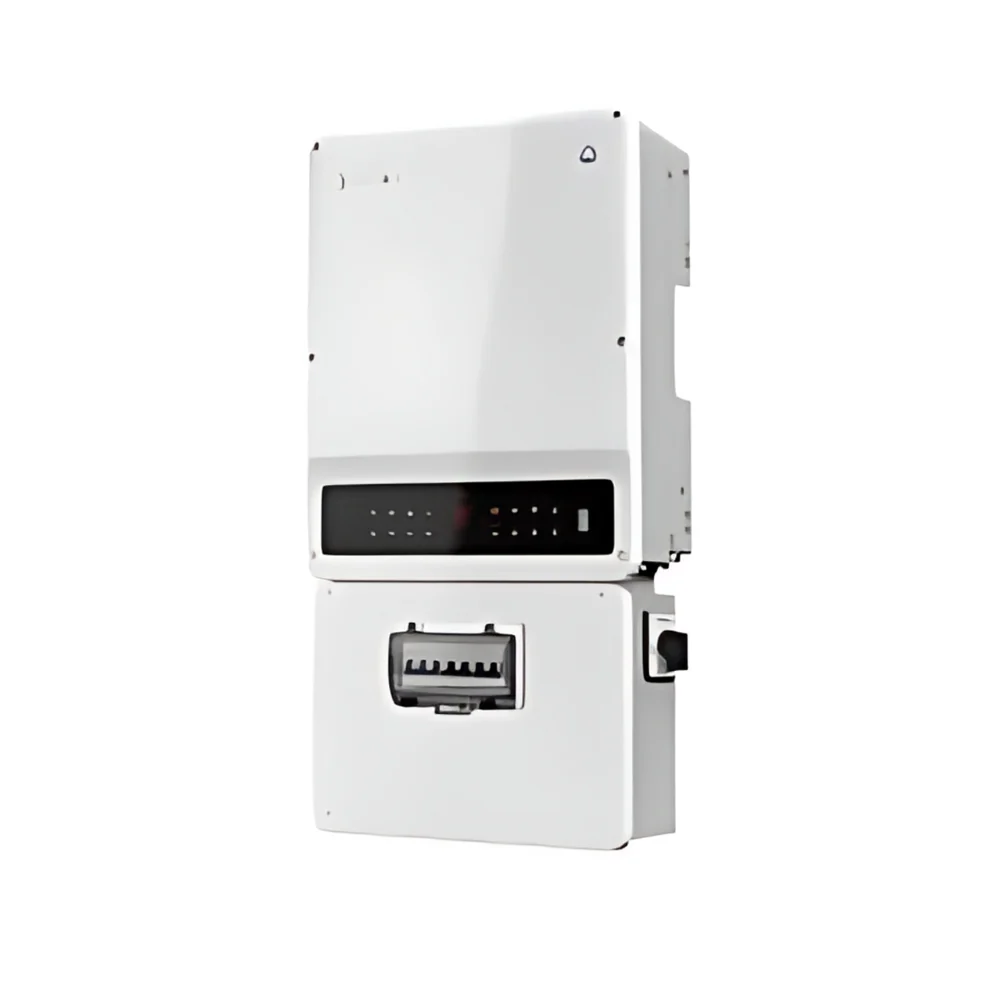

GoodWe 5kW EHB SERIES Single Phase Hybrid Solar Inverter 3 MPPT IP65

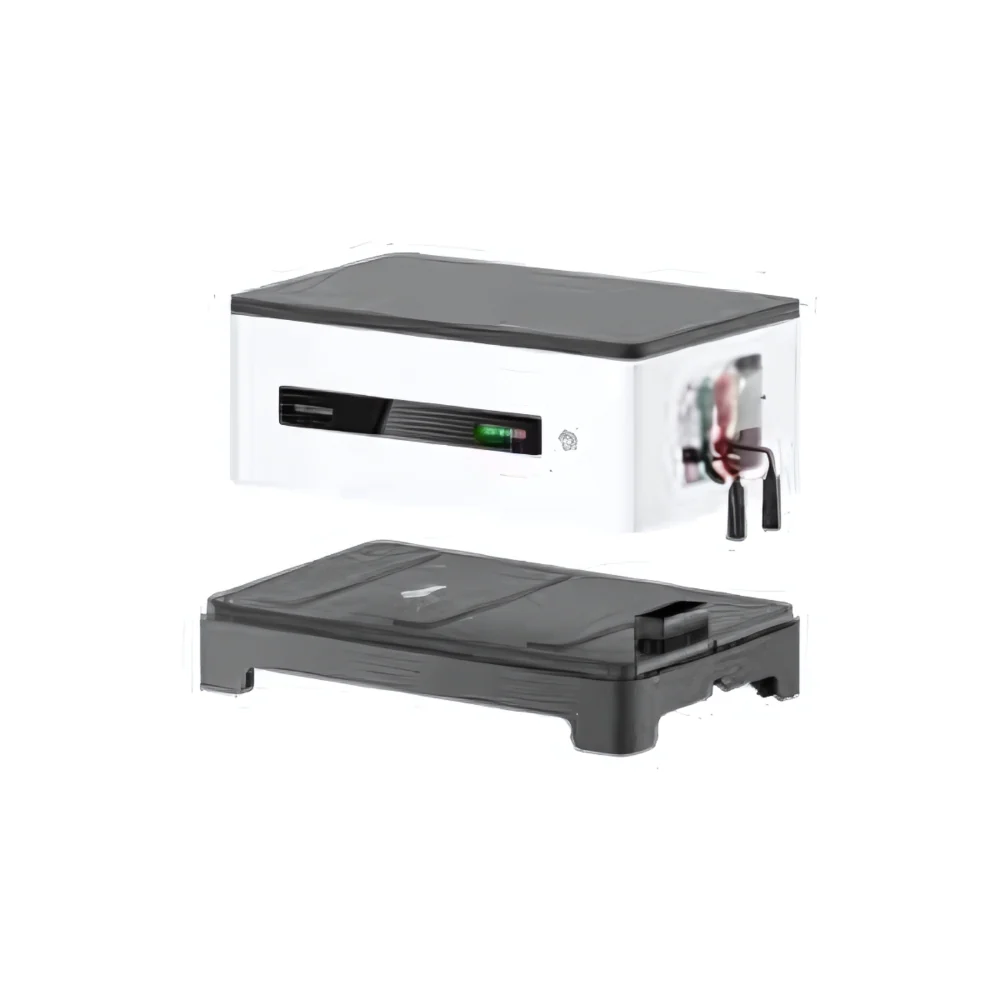

GoodWe LYNX F G2 High-Voltage Power Control Unit (PCU) Including Adjustable Feet
