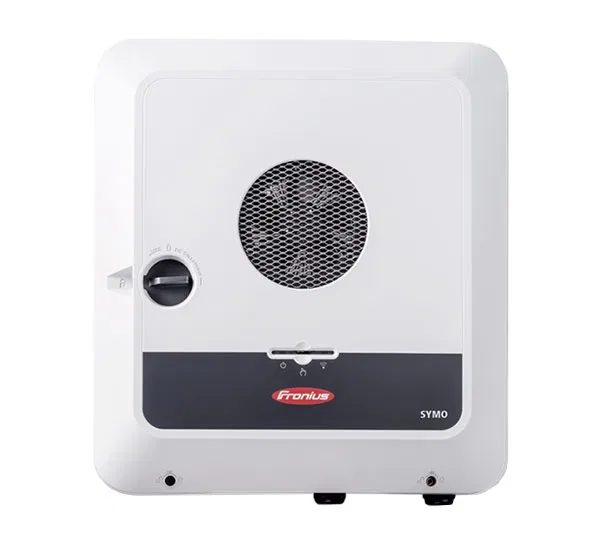

SYMO GEN24 8.0

Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. As of now, the Primo and Symo series are available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, they will continue to receive the familiar version with already enabled battery port - distinguishable by the "plus" after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain proven good.

Technical Specifications:
Max. short circuit current per MPPT (A)	:	40/20
Topology	:	transformerless
Start input voltage (V)	:	80
Max. generator power DC (kWp)	:	12.00
Min. temperature ambient (°C)	:	-25
Backup system full	:	yes with supply
Backup system light	:	no
Max. output current (A)	:	12.10
Protection degree	:	IP66
Number of independent MPPT (pcs)	:	2
Arc Fault Circuit Interrupter	:	no
Surge protection AC	:	type 3
Max. input voltage DC (V)	:	1000.00
Interface 1	:	RS485
Feed-in phases	:	3
Step-Up converter	:	yes
Display	:	w/o display
Decibel	:	47
MPP min. voltage range input (V)	:	80.00
Max. efficiency (%)	:	98.20
DC connection	:	spring-type terminal
Integrated DC switch	:	yes
Min. voltage range input (V)	:	80
MPP max. voltage range input (V)	:	800.00
Total number of string inputs	:	3
Surge protection DC	:	type 2
AC nominal power (kW)	:	8.00
Max. input current DC (A) total	:	37.50
Contact ripple control receiver	:	yes
Interface 2	:	Ethernet
Max. short circuit current (A) total	:	60.00
European efficiency (%)	:	97.80
Max. input current per MPPT (A).	:	25/12,5
Max. AC power (kVA)	:	8.00
L * W * H Without Packaging (mm)	:	595.00 * 529.00 * 180.00
Product warranty (yr)	:	2
